HLY Fanless Industrial Mini PC with RS232 MSATA and Compact Size 182x126x63mm for Embedded Applications

Nom De Marque:	HLY
MOQ:	2
Prix:	$420.10

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

Guangdong, Chine

Certification:

Modèle de processeur:

i7 7500U, i5 7200U, i3 4005U

Cœurs de processeur:

2-4 cœurs

Fils de processeur:

4-8 fils

Fréquence du processeur:

1,7 GHz-3,5 GHz

Type de bélier:

DDR4 2 133/2 400 MHz

RAM Slots:

2 * SO-DIMM

Max Ram:

32 Go

Emplacements de stockage:

2*SATA, 1*mSATA

Résolution d'affichage:

HD 4096*2304 à 24 Hz, VGA 1920 × 1080 à 60 Hz

Vitesse Ethernet:

10/100/1000 Mbps

Entrée d'alimentation:

C.C 12V 5A/60W

Température de fonctionnement:

-20°C à +65°C

Consommation d'énergie:

15W

Circuit de refroidissement:

Fanless

Casque:

Alliage en aluminium

Mettre en évidence:

RS232 Industrial Mini PC

MSATA Fanless Industrial Computer

Compact Size 182x126x63mm Embedded Computer

Description de produit

HLY Mini PC - Industrial Fanless Computer

High-performance industrial mini PC featuring Intel Core processors, dual Gigabit Ethernet, multiple display outputs, and fanless aluminum alloy design for reliable operation in demanding environments.

Technical Specifications

Processor Options	Intel Core i7 7500U (2 core/4 threads, 2.7GHz-3.5GHz, 15W TDP) Intel Core i5 7200U (2 core/4 threads, 2.5GHz-3.1GHz, 15W TDP) Intel Core i5 8350U (4 core/8 threads, 1.7GHz-3.6GHz, 15W TDP)

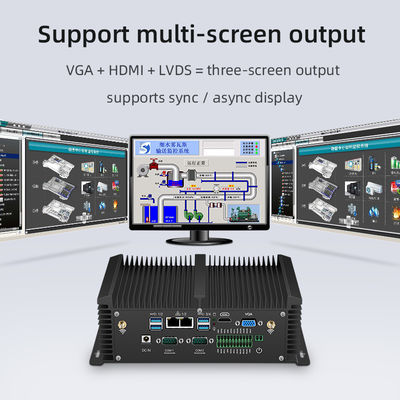

Graphics & Display	Intel HD Graphics 620 HDMI max resolution: 4096×2304@24Hz VGA max resolution: 1920×1080@60Hz

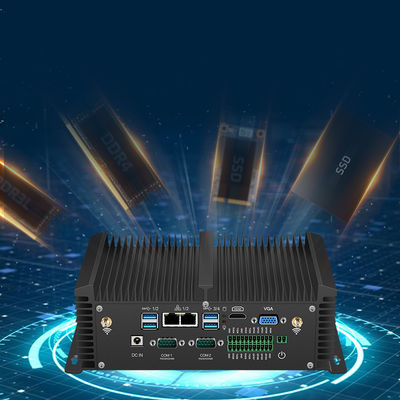

Memory & Storage	2×260-pin SO-DIMM slots (DDR4 2133/2400MHz) Supports up to 32GB RAM 2×SATA ports + 1×full-height mSATA socket
Connectivity	Dual Gigabit Ethernet (Realtek 8111F) Wake on LAN support 8×USB ports RS232 serial port
Power & Environment	DC 12V 5A/60W input (100-240V AC/DC) Operating temperature: -20°C to +65°C Storage temperature: 15°C to 35°C Humidity: 5% to 95% (non-condensing) Power consumption: 15W

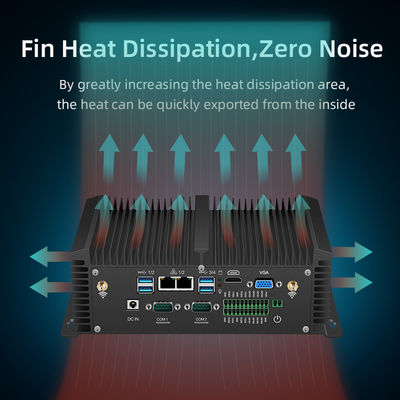

Physical Design	Fanless cooling system Brushed aluminum alloy casing Protective film on surface
OS Support	Windows 8/10, Ubuntu, Linux, CentOS

Package Contents

1× Mini PC
1× Power adapter
2× WiFi antennas
1× SATA power & data cable
1× VESA mount
1× User manual

Warranty

1-year warranty with free repair service. Second and third year offer free repair with parts replacement costs.

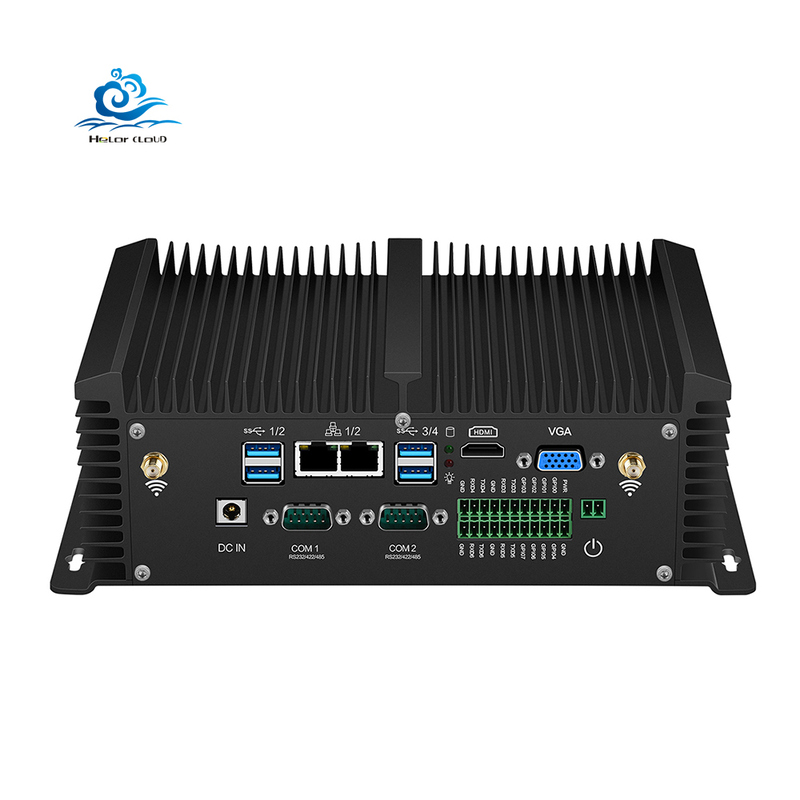

Product Images

Company Profile

Shenzhen Helor Cloud Computer Co., Ltd (HLY), located in Shenzhen, Guangdong, has specialized in mini computers since 2013 with our own professional motherboard manufacturer. We've developed over 50 products applied in various fields including AI, office, education, entertainment, advertising, transport, military, and industrial applications.

Our mini PCs are sold in over 60 countries with annual sales exceeding one million units. We carry components from over 20 manufacturers, allowing us to offer leading-edge technology at competitive prices.

Packaging & Shipping

Power Adapter

Multiple specifications available, selected by default based on shipping destination (EU, UK, US, AU, Brazil, etc.). Contact us for special requirements.

Payment Methods

L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

Shipping Options

DHL, FedEx, UPS, Aramex, post and Alibaba (choose as preferred).

Frequently Asked Questions

What is the warranty policy?

First year: free repair service. Second and third year: free repair with parts replacement costs.

Can I print my logo on the mini PC?

Yes, please provide your logo file. We will confirm the design before production. OEM/ODM services available.

What is the minimum order quantity?

We can sell single units for testing purposes.

How long does packaging take?

Approximately 3 days for inspection and assembly. 10 units ship in ~3 days, 50 units in ~8 days.

Are your mini PCs in stock?

Most models are in stock. Please confirm inventory before ordering.
