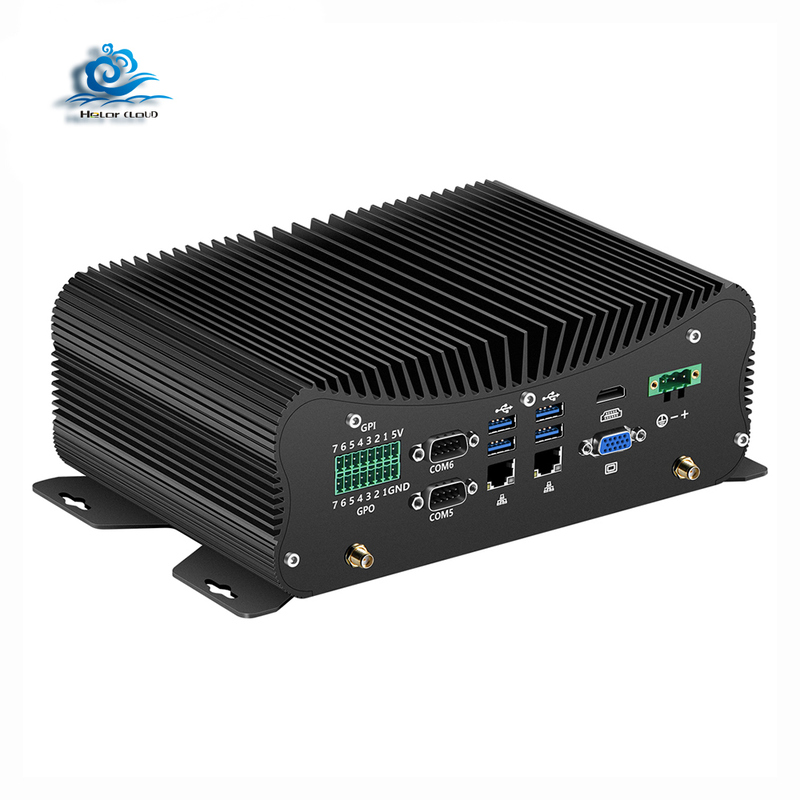

10th Gen Intel Core i7 Industrial Mini PC with 128G mSATA SSD and 8G DDR4 RAM for Rugged Applications

Nom De Marque:	helor
MOQ:	1

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

Guangdong, Chine

Modèle de processeur:

Processeur i7-7567U

Cache du processeur:

Cache 4 Mo

Vitesse du processeur:

jusqu'à 4,00 GHz

Type de mémoire:

SODIMM DDR4 260 broches

Max Memory:

32 Go (16 Go x2)

Options de stockage:

SSD mSATA 128G/SSD M.2 NVME 2280/HDD/SSD 2,5 pouces

Ports lan:

2*Gigabits LAN

Ports USB:

4 * USB3.0, 2 * USB2.0

Connectivité sans fil:

Modem WIFI/Bluetooth/3G/4G

Ports de COM:

6 * RS232/RS485/4RS422 (en option)

Dimensions:

249 x 150 x 86 mm

Poids:

3,5 kg

Température de fonctionnement:

-20 ℃ ~ 65 ℃

Consommation d'énergie:

15-28W

Résolution d'affichage:

VGA : 1920 × 1080 à 60 Hz, HD : 4096 × 2304 à 60 Hz

Mettre en évidence:

10th Gen Intel Core i7 Industrial Mini PC

128G mSATA SSD Industrial PC

8G DDR4 RAM Industrial Mini PC

Description de produit

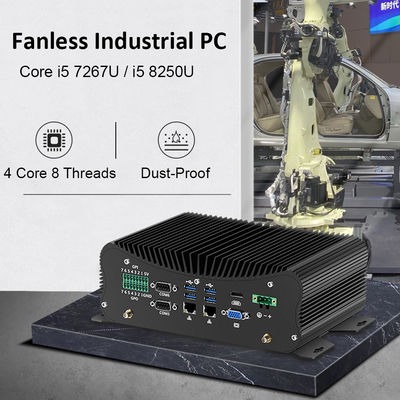

Linux IOT Fanless Rugged 10th Gen Industrial Computer

The HLY H45G is a rugged industrial PC designed to withstand demanding environments with protection against dust, liquids, extreme temperatures, shock, and vibration. Its elegant brushed aluminum design combines durability with modern aesthetics.

Key Features

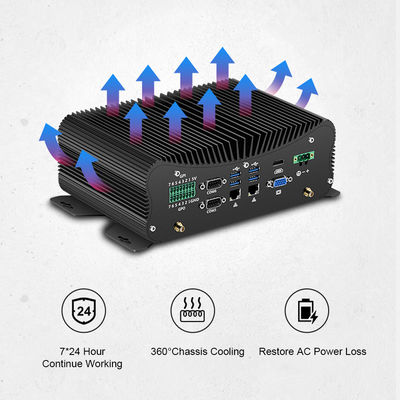

Fanless design with aluminum alloy enclosure for dustproof and moisture-proof operation
Supports 7×24 continuous operation with AC power loss recovery function
Intel Core i3/i5/i7 10th Gen processors with DDR4 RAM support up to 32GB

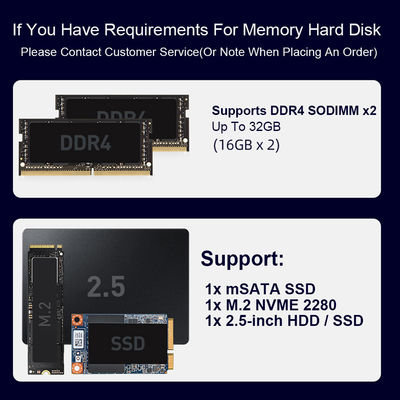

Multiple storage options: M.2 NVME, mSATA, and 2.5" HDD/SSD
Dual Ethernet ports with Wake-on-LAN and PXE Boot support
Comprehensive I/O including USB 3.0/2.0, RS232/RS485, GPIO, and display ports
Supports Windows 10/8/7 and Linux operating systems

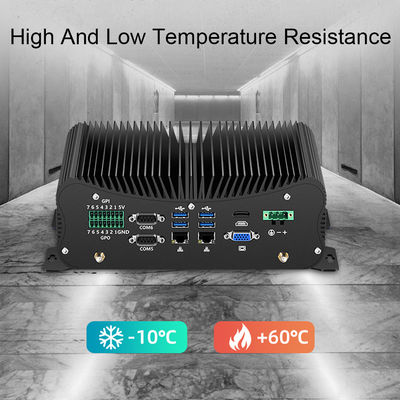

Wide operating temperature range: -20°C to 65°C

Technical Specifications

Model: H26A

CPU Options: Intel Core i5 4200U, i5 8365U, i5 10210U, i7 7567U, i7 10510U

Memory: 2×DDR4 SODIMM slots, up to 32GB

Display: VGA (1920×1080) + HD (4096×2304), dual display support

Networking: 2×Gigabit Ethernet, WiFi 802.11b/g/n

I/O Ports: 4×USB 3.0, 2×USB 2.0, 6×COM (RS232/RS485/RS422), GPIO, LPT, audio

Storage: M.2 NVME 2280, mSATA, 2.5" SATA SSD/HDD

Power: DC 9-36V, 5A/60W (15-28W typical)

Dimensions: 249×150×86mm, 3.5kg

Packaging & Shipping

Standard export carton includes: industrial PC, user manual, VESA mount, power adapter, SATA cables, and WiFi antenna. Multiple shipping options available including DHL, FedEx, Aramex, and postal services.

Frequently Asked Questions

1. How is the performance of this small computer?

Our mini PC uses latest generation Intel CPUs, providing excellent performance for office software, design applications, web browsing, and multimedia. It runs smoothly for small to medium computer games.

2. What are the advantages of fanless design?

Fanless operation means zero noise and no dust accumulation. The aluminum casing effectively dissipates heat while protecting internal components.

3. Can I add additional storage?

Yes, the system supports multiple storage options including M.2 NVME, mSATA, and 2.5" HDD/SSD simultaneously.

4. What display sizes does it support?

The PC supports up to 4K resolution and works perfectly with large displays and projectors up to 150 inches.

5. How is heat management handled?

The aluminum alloy casing and efficient thermal design keep temperatures well within safe operating limits even during continuous 24/7 operation.
