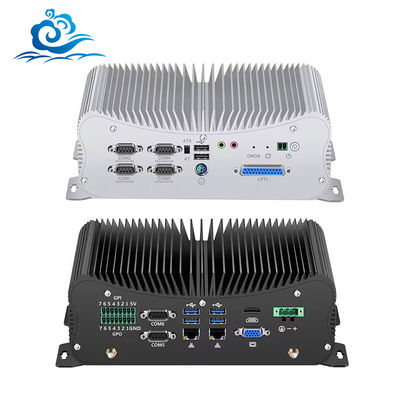

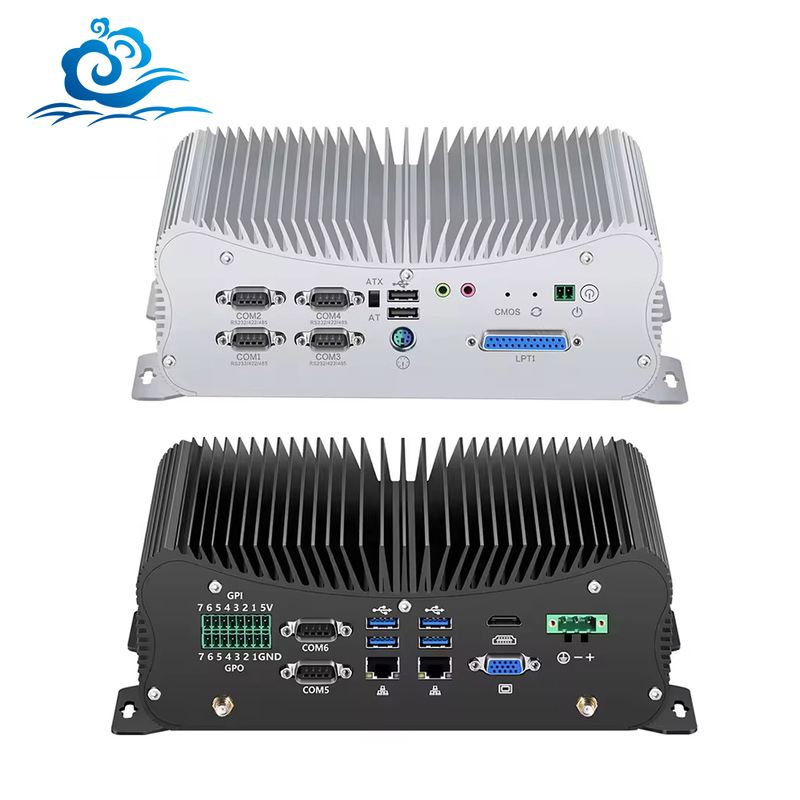

Fanless Mini PC with Intel Core i5-7267U DDR4 RAM and M.2 NVMe SSD Industrial Computer

Name: Fanless Mini PC with Intel Core i5-7267U DDR4 RAM and M.2 NVMe SSD Industrial Computer
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: H45G
Price: 169.00 USD
Availability: InStock

Nom De Marque:	HLY
Numéro De Modèle:	H45G
MOQ:	2

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

Guangdong, Chine

noyau de processeur:

Quad

Type de bélier:

Ddr4

Vitesse de mémoire:

2133/2400Mhz

Type de stockage:

SSD M.2 NVMe 2280 + SSD mSATA

Mémoire vidéo:

2 Go

GPU:

Graphiques Intel UHD 620 / Iris Plus Graphics 650

Ports lan:

2 x GbE RJ45

Ports de COM:

2 RS232, 4 RS232/422/485

Ports GPIO:

7 x entrée, 7 x sortie

Ports USB:

4 x USB3.0, 2 x USB2.0

Entrée d'alimentation:

9-36V

Température de fonctionnement:

-20 ℃ à + 60 ℃

Température de stockage:

-30 ℃ à + 70 ℃

Dimensions:

249 x 150 x 86 mm

Structure:

Conception sans ventilateur, coque en alliage d'aluminium

Mettre en évidence:

Intel Core i5-7267U Fanless Mini PC

DDR4 RAM Industrial Computer

M.2 NVMe SSD Industrial Mini PC

Description de produit

Fanless Mini PC with Intel i5 Processors

Industrial-grade fanless mini PC featuring Intel i5 7267U/8250U processors, DDR4 memory, M.2 NVMe support, and robust connectivity options including 2x LAN, GPIO, RS232, SIM card slot, and LPT port.

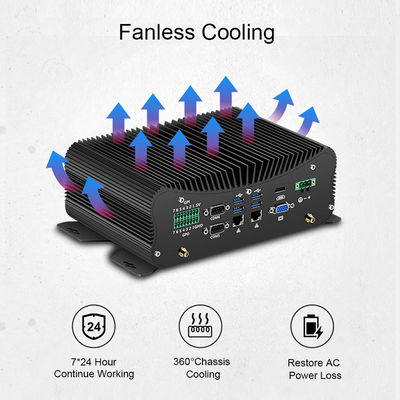

Aluminum Alloy Sturdy Chassis

Special fanless chassis design with superior heat dissipation. Features low power consumption, fully enclosed dustproof construction, corrosion resistance, and high/low temperature tolerance. Capable of 24/7 operation in harsh industrial environments.

Key Features

14 GPIO ports (7 input, 7 output) with 5V voltage compatibility
2 x Gigabit Ethernet RJ45 ports (Intel i211/i210)
6 x DB9 COM ports (2 RS232 + 4 RS232/422/485)
LPT port for printer/scanner connectivity
ATX/AT power mode selection via DIP switch
3-pin Phoenix connector supporting 9-36V power input

Technical Specifications

Processor	Intel Core i5-7267U (2C/2T, up to 3.50GHz, 28W TDP) Intel Core i5-8250U (4C/8T, up to 3.40GHz, 15W TDP) Multiple other Intel processor options available
Display	Dual display support (VGA + HDMI) Intel UHD Graphics 620 (i5-8250U) or Iris Plus Graphics 650 (i5-7267U)
Memory	2x DDR4 SO-DIMM slots (up to 32GB) 2133/2400MHz, 1.35V
Storage	1x M.2 NVMe 2280 SSD slot 1x full height mSATA SSD slot 1x 2.5" SATA HDD/SSD bay
I/O Ports	4x USB 3.0, 2x USB 2.0, 6x COM, 1x LPT, 1x HDMI, 1x VGA, 1x PS/2, 14x GPIO, 1x MIC, 1x SPK, 2x antenna interfaces
Power	9-36V DC input via 3-pin Phoenix connector
Dimensions	249 x 150 x 86 mm

Package Contents

1 x Mini PC
1 x User manual
1 x Power cord
1 x SATA data and power cable

Note: Barebone unit does not include WiFi. Default configuration includes mSATA SSD and DDR4 RAM. For M.2 NVMe SSD or other custom requirements, please contact us.

Company Profile

Shenzhen Helor Cloud Computer Co., Ltd (HLY) specializes in mini computer manufacturing since 2013. With our own professional motherboard manufacturer, we've developed over 50 products applied in various fields including AI, industrial automation, military, and more. Our products are sold in over 60 countries with annual sales exceeding one million units.

Packaging & Shipping

Power Adapter

Multiple specifications available, selected based on shipping destination. Custom requests accommodated.

Payment Methods

L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

Packaging

Waterproof bag protection with foam-secured inner carton box and outer protective packaging.

Shipping Options

DHL, FedEx, UPS, Aramex, post and Alibaba shipping available.

Frequently Asked Questions

What is the warranty policy?

First year free repair service, second and third year free repair with parts replacement costs.

Can I add my logo to the mini PC?

Yes, we support OEM/ODM services. Please provide your logo file for confirmation.

What is the minimum order quantity?

Single sample units available for testing.

How long does packaging take?

Approximately 3 days for inspection and assembly. 10 units ship in ~3 days, 50 units in ~8 days.

Are your mini PCs in stock?

Most models are in stock. Please confirm inventory before ordering.

Étiquettes:
