Fanless Industrial PC with Intel Core i5-7200U 2 Gigabit NIC RS485 RJ45 Mini PC

Nom De Marque:	HLY
MOQ:	1

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

Guangdong, Chine

Modèle de processeur:

Pour les appareils électroniques:

Vitesse du processeur:

jusqu'à 3,10 GHz

Fentes de mémoire:

SODIMM à 2 emplacements

Type de mémoire:

DDR3L 1,35 V 1 333/1 600 MHz

Type de stockage:

SSD mSATA + disque dur 2,5 pouces

Sortie vidéo:

1xHD + 1xVGA

Ports USB:

2xUSB2.0 + 4xUSB3.0

Ports lan:

2x10/100/1000 Mbit/s

Tension de travail:

DC 12V 5A

Consommation d'énergie:

10-15W

Casque:

Alliage en aluminium

Dimensions:

235*137*51mm

Poids:

20,0 kg

Température de fonctionnement:

-20 ℃ ~ 65 ℃

Humidité opérationnelle:

5 % à 95 % d'humidité relative

Mettre en évidence:

2 Gigabit NIC Industrial PC

RS485 Mini PC

RJ45 Fanless Computer

Description de produit

OEM Industrial PC Core I5 7200U X86 Fanless Mini Computer

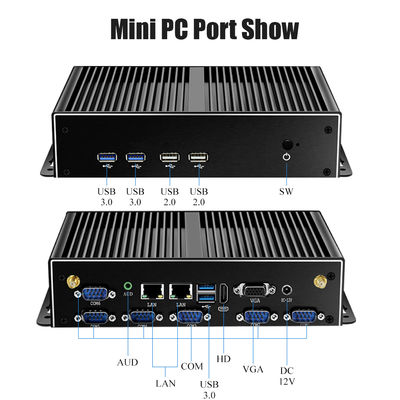

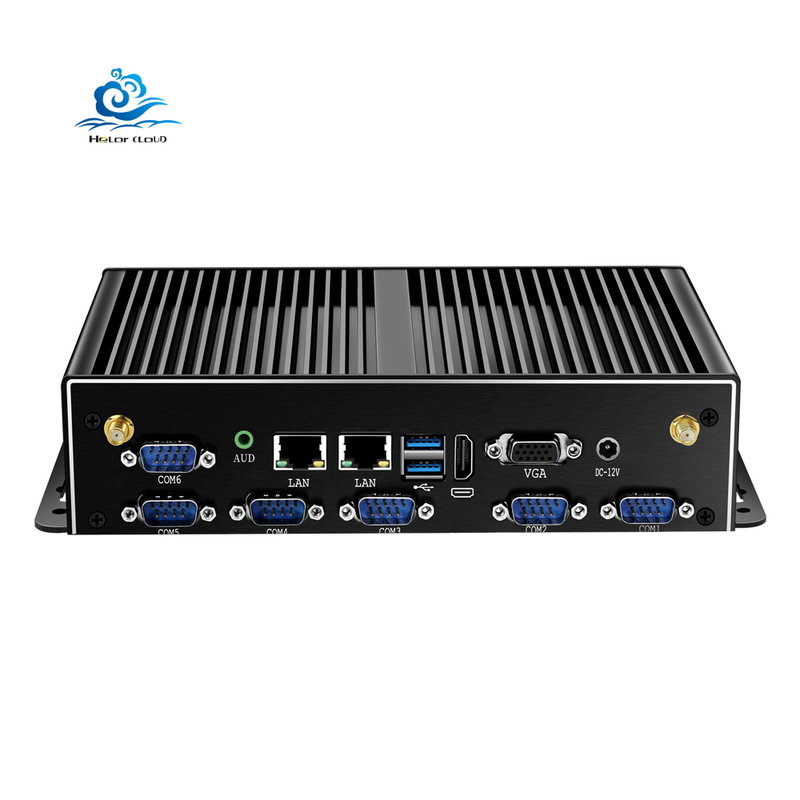

The H26A industrial PC combines elegant design with robust functionality. Its brushed aluminum front panel features 4 USB 2.0 ports and SPK/MIC connections, while the rear panel houses additional I/O including USB 3.0, Ethernet, RS232 COM port, and HD/VGA outputs. Designed for industrial environments, this fanless system operates silently with excellent thermal performance.

Technical Specifications

Model	H26A
CPU Options	Intel Core i7 7200U (2 Core/4 threads, 3M Cache, 1.60-2.60 GHz) Intel Core i5 4200U (2 Core/4 threads, 3M Cache, 1.60-2.60 GHz) Intel Core i7 4500U (2 Core/4 threads, 4M Cache, 1.80-3.00 GHz) Intel Core i7 5500U (2 Core/4 threads, 4M Cache, 2.40-3.00 GHz) Intel Core i3-4010U (2 Core/4 threads, 3M Cache, 1.70 GHz) Intel Celeron 2955U (2 Core/2 threads, 2M Cache, 1.40 GHz) Intel Pentium 3805U (2 Core/2 threads, 2M Cache, 2.00 GHz) Intel Celeron J1900 (4 Core/4 threads, 2M Cache, 2.00 GHz)
Memory	2x SODIMM slots (DDR3L 1333/1600MHz), supports up to 16GB RAM
Display	VGA (1920×1080@60Hz) + HD (3280×2000@60Hz), supports dual display
Networking	2x Gigabit Ethernet ports, WiFi 802.11b/g/n (300M), Bluetooth 4.0
I/O Ports	6x RS232, 4x USB 3.0, 2x USB 2.0, audio ports
Storage	1x 2.5" SATA SSD + 1x mSATA socket
OS Support	Windows 7/8/10, Linux, Ubuntu, CentOS
Power	12V DC input, 5A/60W adapter (100-240V AC), typical consumption 10-15W
Dimensions	235×137×51mm (W×D×H), 2.0kg weight
Environment	Operating temperature: -20℃ to 65℃, humidity: 5%-95% non-condensing

Key Features

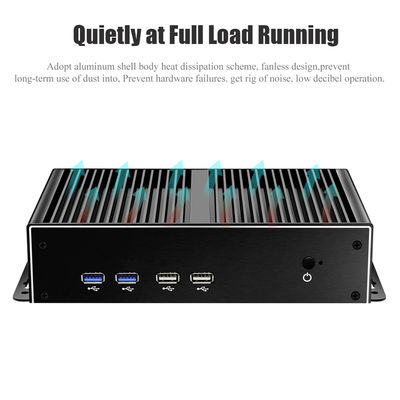

Fanless design for silent operation and dust resistance
Industrial-grade aluminum alloy casing for durability

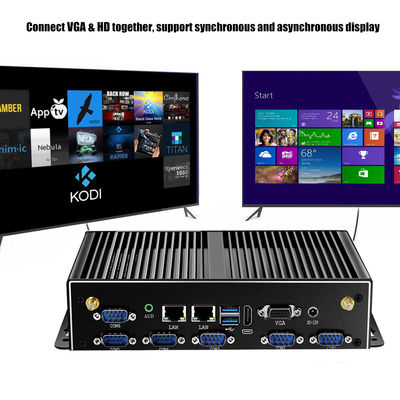

Supports dual display output (VGA + HD) for multi-monitor setups
Multiple CPU options to match performance requirements
Wide operating temperature range (-20℃ to 65℃)
Supports Watchdog timer for industrial applications

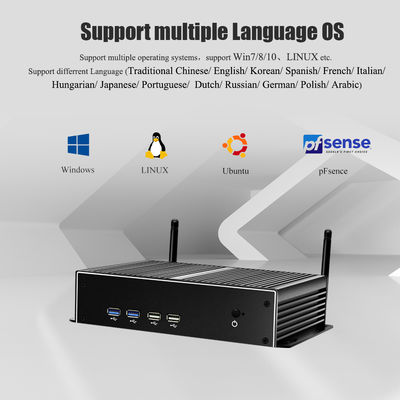

Multiple OS support including Windows and Linux distributions

Applications

Ideal for industrial automation, digital signage, education, factory control systems, and office environments. The dual display support makes it perfect for digital advertising, conference rooms, and control room applications.

Package Contents

Mini PC unit
User manual
VESA mount kit
Power adapter (region selectable)
SATA data and power cables
WiFi antennas

Shipping & Payment

We support multiple shipping methods (DHL, FedEx, Aramex, etc.) and payment options including T/T, L/C, Western Union, and Alibaba Trade Assurance. Power adapters available with US, EU, UK, AU, CN, or Brazil plugs.

Frequently Asked Questions

1. How is the performance of this small computer?

Our mini PC uses Intel's latest low-power CPU architecture, delivering excellent performance for office applications, design software, web browsing, and multimedia. It handles small to medium computer games smoothly.

2. What are the advantages of fanless design?

Fanless computers operate silently with zero noise and don't accumulate dust like traditional computers. They use high-quality, low-power components that generate minimal heat while maintaining reliable operation.

3. Can I add additional storage?

Yes, this model supports both mSATA SSD for the operating system and a 2.5" SATA drive for additional storage capacity. The package includes all necessary cables and mounting hardware.

4. Does it support large displays?

The HDMI and VGA ports support any size display or projector up to 4K resolution. We've tested it successfully with 55" TVs and 150" projector screens with excellent results.

5. How is the thermal performance?

The aluminum casing effectively dissipates heat, with CPU temperatures typically around 60℃ during operation. Each unit undergoes 72 hours of burn-in testing before shipping to ensure reliability.

About HLY

Shenzhen Helor Cloud Computer Co., Ltd specializes in industrial mini computers since 2013. With our own motherboard manufacturing facility, we've developed over 50 products serving various industries including automation, AI, education, and digital signage. Our products are sold in more than 60 countries with annual sales exceeding one million units.

Our Services

1-year warranty with extended repair service
Sample units available for testing
OEM/ODM services supported
24/7 customer support
Reliable long-term supply
